Frontend Design Flows

Design Flow Architecture

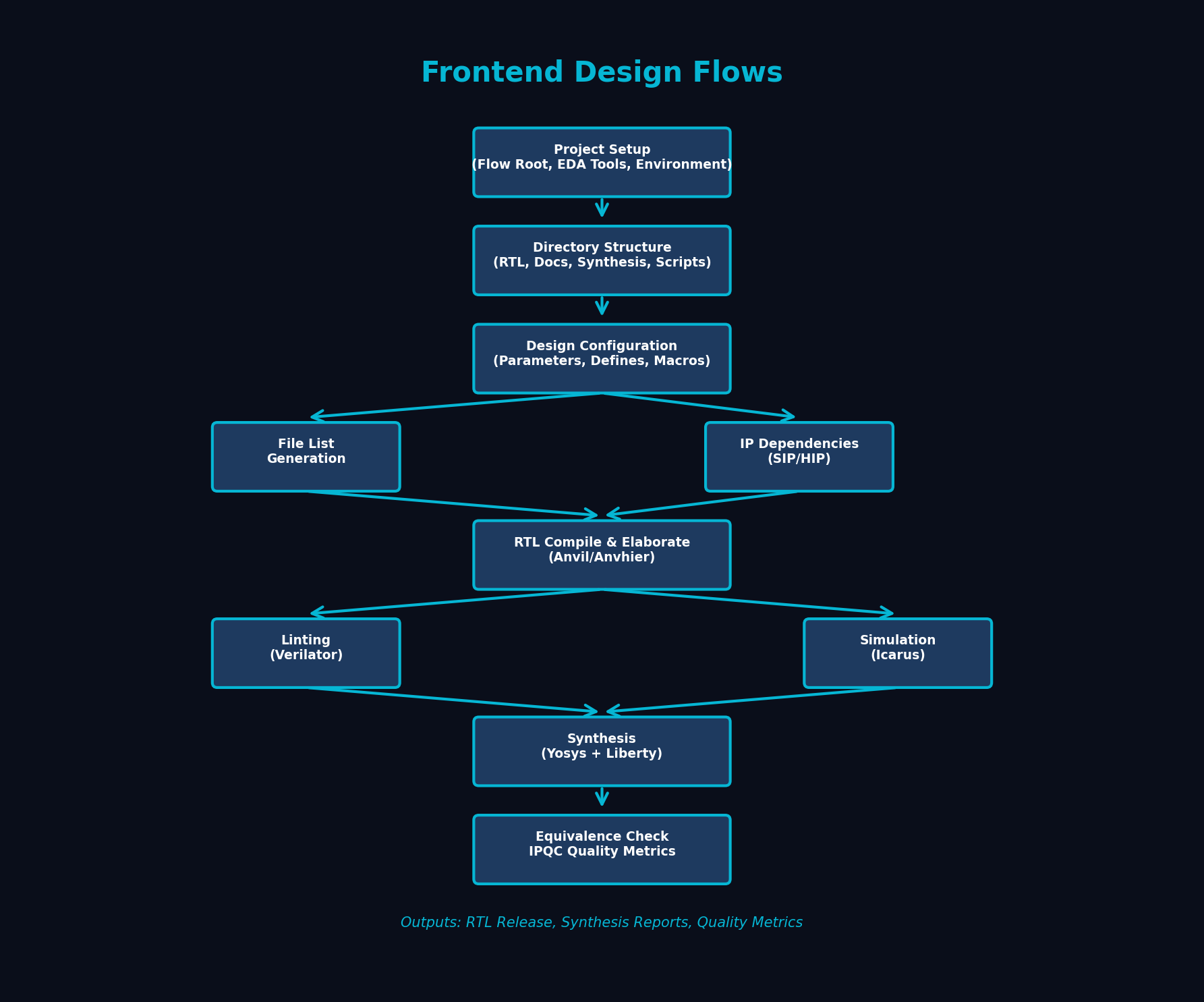

Frontend Design Flow Overview

The Frontend Design Flow provides a comprehensive methodology for RTL development, from project setup through synthesis and quality checks. This flow follows industry best practices and integrates seamlessly with the EDAUtils AI System.

Standard Directory Structure

Top-level project root with clear organization
RTL source files in dedicated directory
Documentation folder for specifications and guides
Synthesis directory for constraints and scripts
Verification directory for testbenches
Scripts folder for automation and flow control

1. Project Setup

Flow Root Configuration: Establish FLOW_ROOT environment variable pointing to project base directory. Set EDA tool versions and licensing.

Environment Variables: Configure PATH, LD_LIBRARY_PATH, and tool-specific variables (VCS_HOME, YOSYS_PATH, etc.).

Workspace Initialization: Create standard directory tree, set permissions, initialize version control.

2. Multiple Design Configuration

Generic RTL with Parameters: Write parameterizable RTL code using `parameter` and `define` macros. Example: addr_width=128, data_width=64.

Configuration Files: Maintain separate configuration files for different design variants. Use +define+ compiler directives for conditional compilation.

Parameter Overrides: Command-line parameter passing for quick design exploration. Design-time vs. compile-time parameters.

3. File List Generation

Automated file list generation from project structure
Dependency resolution for SIP (Soft IP) and HIP (Hard IP)
Include path management and library mappings
Macro definitions and conditional compilation
Flattened, consolidated file list output
Support for multiple file list formats

4. RTL Compile & Elaborate

Anvil/Anvhier Tools: Fast RTL compilation and elaboration. Syntax checking, module hierarchy analysis, parameter propagation validation.

Error Detection: Catch syntax errors, undefined modules, port mismatches, width mismatches early in the flow.

Elaboration Reports: Module hierarchy tree, instance counts, parameter values, memory usage estimates.

5. Linting with Verilator

Style Checking: Coding style violations, naming conventions, unused signals and variables.

Quality Checks: Combinational loops, inferred latches, multi-driven nets, clock domain issues.

Waiver Management: Systematic waiver of known false positives. Waiver review and audit trails.

6. Simulation Flow

Icarus Verilog open-source simulation
VCS/Xcelium support for commercial flows
Testbench integration and compilation
Waveform dumping (VCD/FST/FSDB)
Coverage collection (code and functional)
Debug capabilities with assertion checking

7. Synthesis with Yosys

RTL Synthesis: Yosys open-source synthesis engine. Technology mapping to ASIC or FPGA targets.

Liberty Library: Timing library (.lib) integration. Cell characterization and delay models.

Constraints: SDC (Synopsys Design Constraints) for timing. Clock definitions, input/output delays, false paths.

Reports: Area, timing, power analysis. Quality of results (QoR) metrics.

8. Equivalence Checking & IPQC

Formal Verification: Equivalence checking between RTL and synthesized netlist. Verification of design transformations.

IPQC Quality Checks: IP Quality Check automated analysis. Coverage metrics, lint clean status, synthesis QoR.

Release Criteria: Pass/fail criteria for RTL release. Quality gates and sign-off requirements.
